Choosing the Right LED Downlights: Fire Ratings, IP Ratings, and Our Top Pro-Pick

Why are fire-rated downlights essential for home safety?

When you install recessed ceiling lights, you are essentially cutting a hole through your home’s natural fire barrier—the plasterboard. If you are choosing the best LED downlights, it’s important to consider fire safety. In the event of a fire, these holes act like chimneys, allowing flames and smoke to spread rapidly between floors. Installers equip fire-rated downlights with a specialized intumescent pad; when this pad reaches a specific temperature, it expands, seals the hole, and maintains the ceiling’s integrity for up to 90 minutes.

Beyond the obvious safety benefits, installing these fixtures is often a legal necessity. To comply with UK building regulations (specifically Part B), fire-rated lighting is a requirement for most residential properties where there is a living space or another dwelling above. Our Integral Evofire Downlights range is a favourite for this exact reason; they provide maximum peace of mind while meeting the highest safety standards for 30, 60, and 90-minute fire-rated ceilings.

Choosing a premium model like the Integral ILDLFR70D001 means you don’t have to sacrifice style for safety. While many traditional fire-rated units are bulky and difficult to install, modern designs are lightweight and offer a low-profile aesthetic. By investing in high-quality Integrated Downlights, you ensure your home is both legally compliant and protected by the latest in fire-prevention technology.

What is the difference between Warm White and Cool White LEDs?

The colour temperature of your lighting, measured in Kelvins (K), is the single most important factor in defining the “mood” of a room. Warm White (2700K – 3000K) produces a soft, orange/yellow glow similar to traditional halogen bulbs, making it the go-to choice for bedrooms, lounges, and dining areas. If you are looking to create an inviting atmosphere in your primary living spaces, browsing our GU10 Downlights category will show you plenty of warm-tone options.

On the opposite end of the spectrum is Cool White (4000K), which offers a crisp, blue-toned light that mimics natural daylight. This temperature suits “task” areas that demand clarity and focus, such as home offices, utility rooms, or modern kitchens. For those who want a clean, clinical look that accentuates marble surfaces or stainless steel appliances, we have specifically optimized many items in our Panel Downlights range for these higher Kelvin ratings.

If you find it difficult to choose, consider the versatility of dimmable LED downlights. Being able to dim a Cool White light can soften the room for evening use, while dimming a Warm White light creates a “candlelit” feel for relaxing. The Integral ILDLFR70D015 works seamlessly across different zones; furthermore, its compatibility with high-quality dimmers empowers you to transition your space from a bright workspace to a cosy sanctuary with a single switch.

Which downlights are safe for bathrooms and wet zones?

Bathrooms are divided into specific “Zones” based on their proximity to water sources, and each zone requires a specific level of protection. To ensure your lighting survives steam, humidity, and direct splashes, you must look for an IP (Ingress Protection) rating. For areas directly above a shower or bath (Zone 1), use IP65-rated downlights, as their design seals out dust and water jets.

The Integral SKU: ILDLFR70D001-4 is particularly popular for bathroom renovations because it carries that vital IP65 rating without looking like a bulky “outdoor” light. If you are looking for more specialized designs that can handle moisture while adding a designer touch, our Architectural and Scoop Downlights collections offer water-resistant options that allow you to highlight specific features like a freestanding tub or a tiled alcove safely.

Safety in wet zones doesn’t mean you have to settle for boring fixtures. Modern bathroom lighting has evolved to include sleek, low-profile designs that sit flush against the ceiling, preventing moisture build-up behind the bezel. Whether you choose a classic white finish or modern brushed steel, always install Downlights with the correct rating for the specific zone; this prevents electrical shorts and extends the fixture’s life.

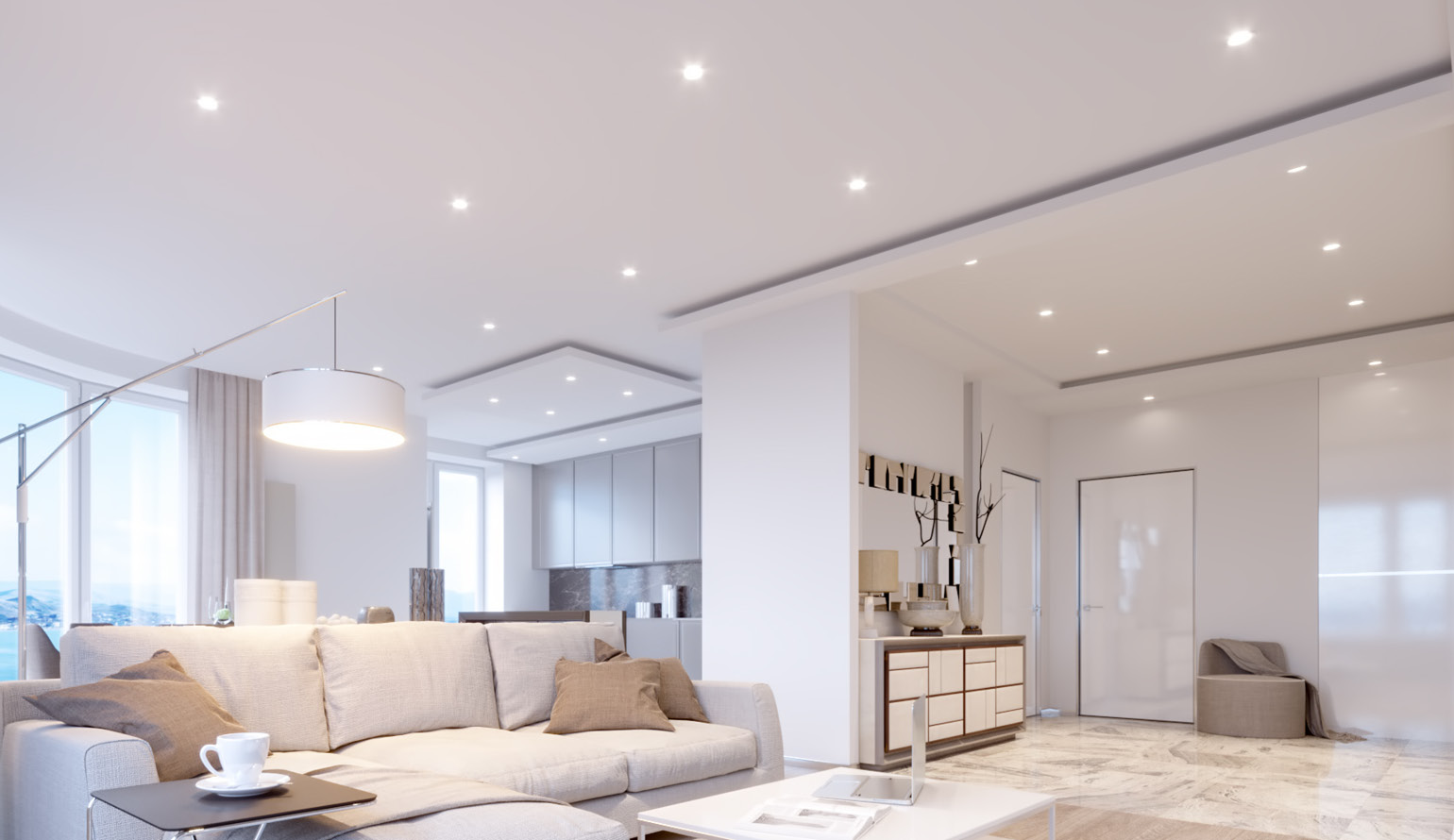

How do I calculate the spacing for my ceiling lights?

One of the most common DIY mistakes is creating a “grid” of lights that is either too crowded or leaves the centre of the room in darkness. A professional downlight spacing strategy involves placing your fixtures approximately 1m to 1.2m apart. You should also aim to keep them roughly 60cm away from the walls to prevent light “hotspots” and harsh shadows from appearing on your paintwork or wallpaper.

For rooms with unique architectural features or slanted ceilings, you may need to vary your approach. In these cases, Scoop Downlights are an excellent choice as they allow you to tilt the internal lamp to direct light exactly where it is needed. If you are working with a solid ceiling where cutting holes isn’t possible, our Surface Mounted range provides a stylish alternative that still gives you the directed, modern glow of a traditional downlight setup.

Finally, consider the total lumen output (brightness) of the room rather than just the number of holes in the ceiling. A kitchen typically requires more light than a bedroom, so you might choose higher-output LEDs from our Panel Downlights range for those high-traffic areas. By using the Integral ILDLFR70D001-4 4-pack, you can easily calculate your coverage and ensure a consistent, professional-grade light spread across even the largest open-plan living spaces.

How can I ensure my LED downlights are dimmable?

Achieving the perfect ambiance starts with ensuring your hardware is compatible. Not all LEDs are designed to be dimmed; using a non-dimmable light on a dimming circuit can lead to annoying flickering, buzzing, or even permanent damage to the LED driver. When browsing our Integrated Downlights or GU10 Downlights, always double-check the product specifications to confirm the unit is explicitly labelled as “dimmable.”

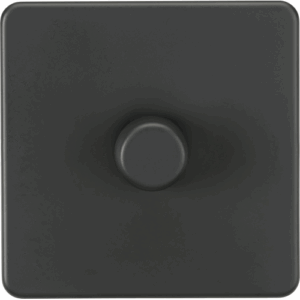

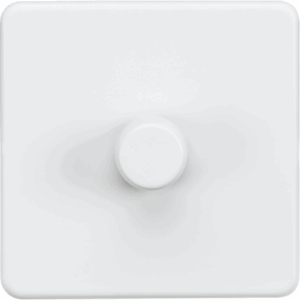

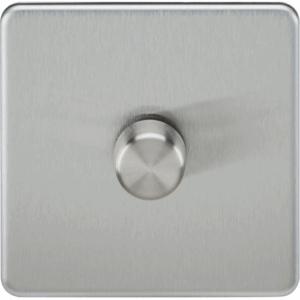

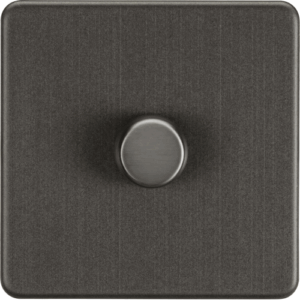

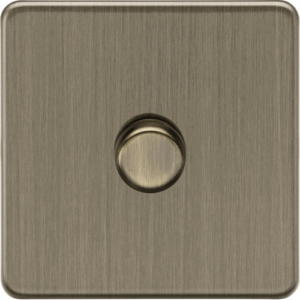

The technical side of dimming is equally important, particularly the type of switch you use. Modern LED technology typically requires a “trailing-edge” dimmer switch rather than the older “leading-edge” versions used for traditional halogen bulbs. Trailing-edge dimmers provide a much smoother start to the current, which protects the sensitive circuitry within high-end fixtures like the ILDLFR70D015 and ensures a silent, flicker-free experience from 100% brightness all the way down to a low glow.

Finally, you should consider the “dimming range” and the load on your circuit. Most dimmer switches have a minimum and maximum wattage load; if you have too few or too many lights on one switch, they may not dim correctly. Choosing a premium, well-engineered product like our favourite Integral ILDLFR70D003-3 simplifies this process; because Integral extensively test these units for compatibility with most modern UK dimmer brands, you can install with total confidence.

Integrated LED downlights are better than GU10 bulbs?

The debate between Integrated Downlights and GU10 Downlights usually comes down to a choice between longevity and flexibility. GU10 fixtures use a replaceable bulb, which some homeowners prefer because it allows them to swap out the light source if they want to change colour temperatures later. However, because the small housing crams the separate bulb unit into a tight space, the system often fails to manage heat effectively; this heat pops the bulbs or diminishes their brightness prematurely over time.

In contrast, integrated LED downlights are designed as a single, cohesive unit where the LED chips are built directly into the fixture’s heat sink. This engineering allows for far superior thermal regulation, which is why integrated units often boast lifespans exceeding 30,000 to 50,000 hours. When you choose a high-performance model like the Integral Evofire ILDLFR70D001-4, you are investing in a “fit and forget” solution. You won’t have to worry about climbing ladders to change bulbs every few months, making them the ideal choice for high ceilings or busy households.

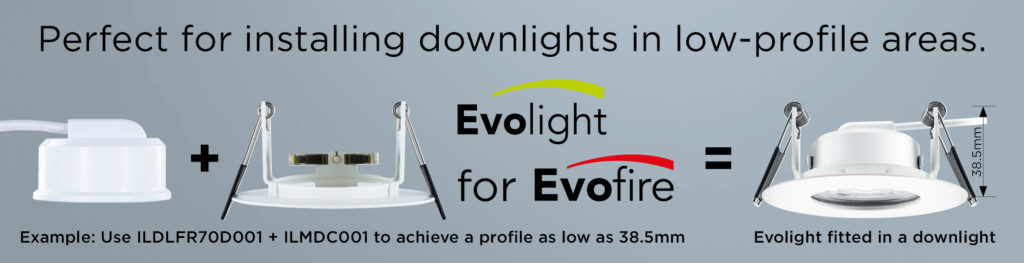

Furthermore, integrated units allow for a much slimmer, more “architectural” design. Because they don’t need to accommodate a bulky GU10 lamp holder, they can be made with ultra-low profiles—perfect for thin ceiling voids where space is at a premium. If you are browsing our Panel Downlights or our specialized Architectural ranges, you’ll notice that the integrated technology allows for a much cleaner, more modern aesthetic. Ultimately, while GU10s offer a lower upfront cost, the efficiency and durability of integrated LEDs almost always offer better value over the life of the product.

Our Top Recommendation: Why the Integral ILDLFR70D001-4 is the Ultimate Choice

If you are looking for the perfect blend of performance, safety, and value, the Integral Evofire ILDLFR70D001-4 is our absolute “Pro-Pick.” This specific 4-pack offers incredible value for money, making it the most cost-effective way to kit out an entire room without compromising on quality. Unlike standard single-unit purchases, this bundle ensures you have perfectly matching finishes across your ceiling while keeping your project budget firmly on track.

One of the standout technical features of the Evofire range is its patented “open-back” or canless design. Traditional fire-rated downlights often trap heat inside a large metal canister, which can cook the LED bulb and shorten its lifespan. The Integral Evofire Downlight allows the lamp to breathe, running up to 10°C cooler than typical “can-style” lights. This superior heat dissipation significantly extends the life of your GU10 bulbs, saving you money on replacements and maintenance over the years.

Finally, this model outperforms every other light in its price bracket for pure aesthetic impact. It features an ultra-thin 1mm “blend-in” bezel that is up to 10 times thinner than standard IP65-rated downlights, creating a nearly flush finish that looks premium and discreet. Despite its slim profile, it is a safety powerhouse, fully fire-rated for 30, 60, and 90 minutes and compliant with all major UK building regulations (Parts B, C, E, and L). Whether you install them in a moisture-heavy bathroom or a designer living room, these lights provide a high-end, seamless look and feature a durable design meant to last.

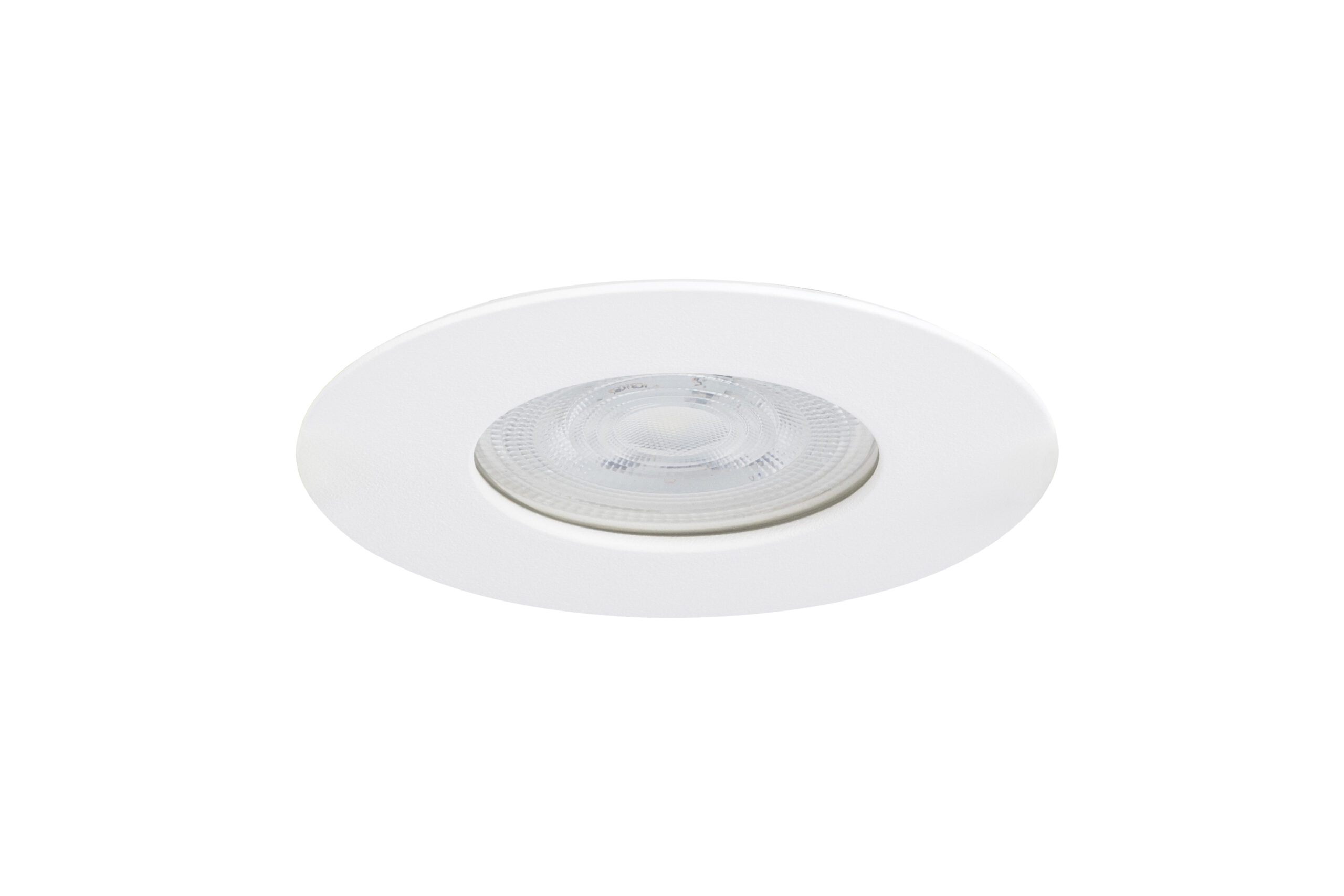

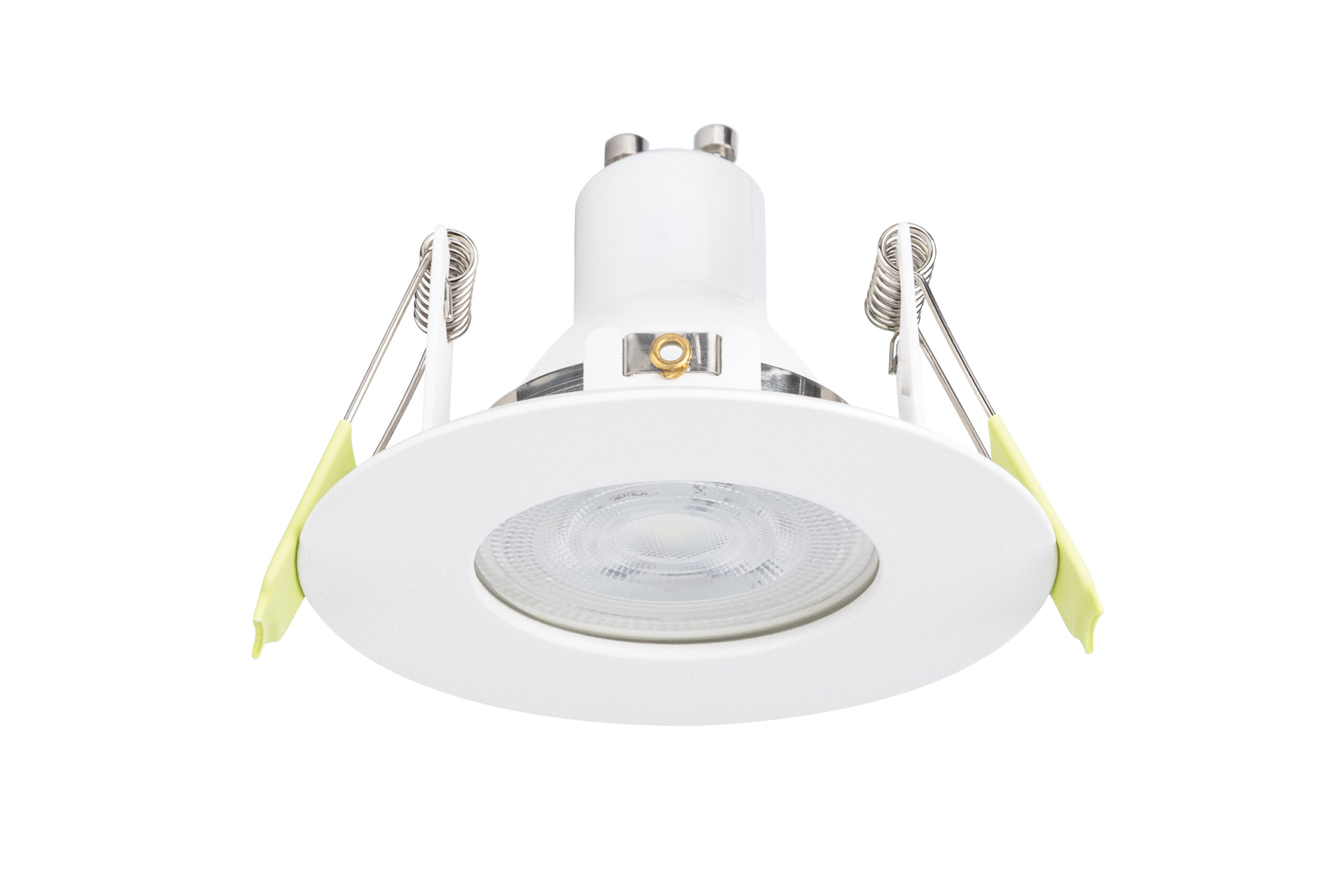

Integral Evofire IP65 Downlight 70mm Cutout White – 4 Pack

The Evofire Fire Rated Downlight, a premium recessed ceiling fitting, accommodates GU10 – 4 Pack LED lamps while delivering certified fire protection, superior thermal performance, and refined modern styling.

This model features a round design with a 70mm cut‑out, a IP65 rating and a durable white finish, making it ideal for both residential and light commercial applications.

View Product

SKU ILDLFR70D001-4
